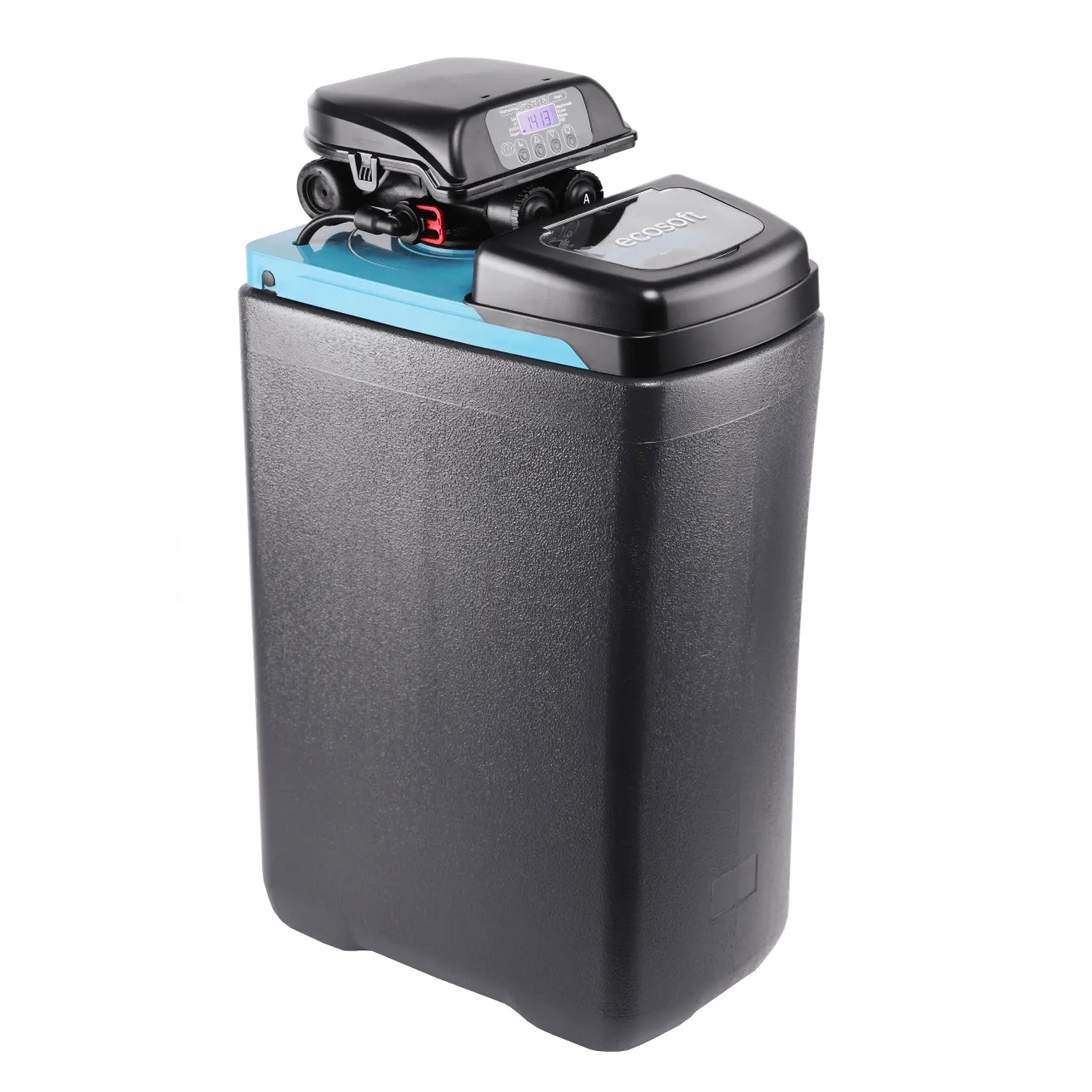

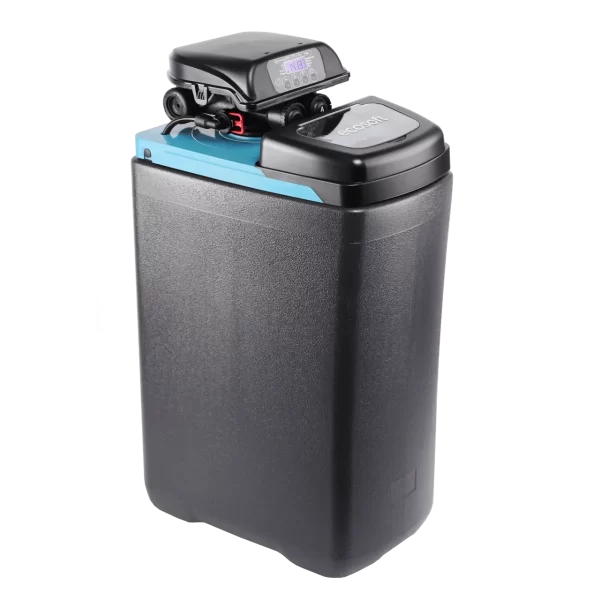

Core 250 water softener – compact 24 L solution for apartments

The Core 250 is a 24-liter water softener for tap water, designed for larger households of up to 5 people. It fits well in bathrooms or utility spaces and delivers effective limescale reduction to protect appliances and plumbing. By softening water, it not only extends the life of appliances, but also improves everyday comfort – from softer laundry to cleaner dishes.

The Core 250 doesn’t require a pre-filter or regular servicing, which makes it a smart, space-saving solution for busy households.

Technical information

Flow rate – up to 1.8 m³/h
Quantity of resin – 24 L
Number of bathrooms – up to 2
Number of people – 5
Usage of salt per regeneration – 2.4 kg
Usage of water per regeneration – 60–70 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness) – 4.6 m³
Duration of regeneration – up to 70 min
Pressure drop in service mode – 0.5 bar
Inlet pressure – 2–6 bar
Electrical requirements – 230 V, 50 Hz
Power consumption – 30 W

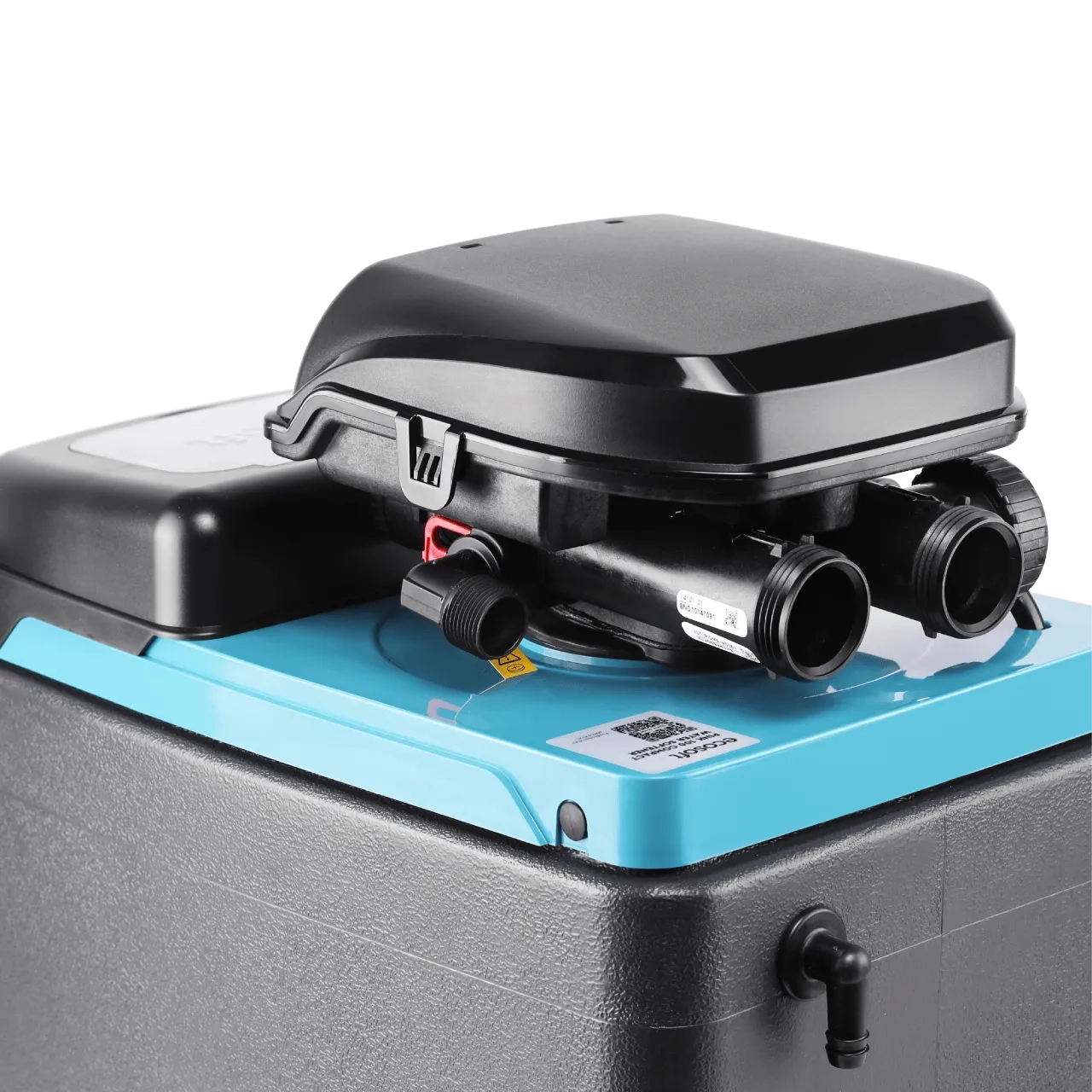

Inlet/outlet pipe connections – 3/4″
Dry weight – 32 kg
Dimensions (H × W × D) – 741 × 270 × 430 mm
Pressure tank – 1024″

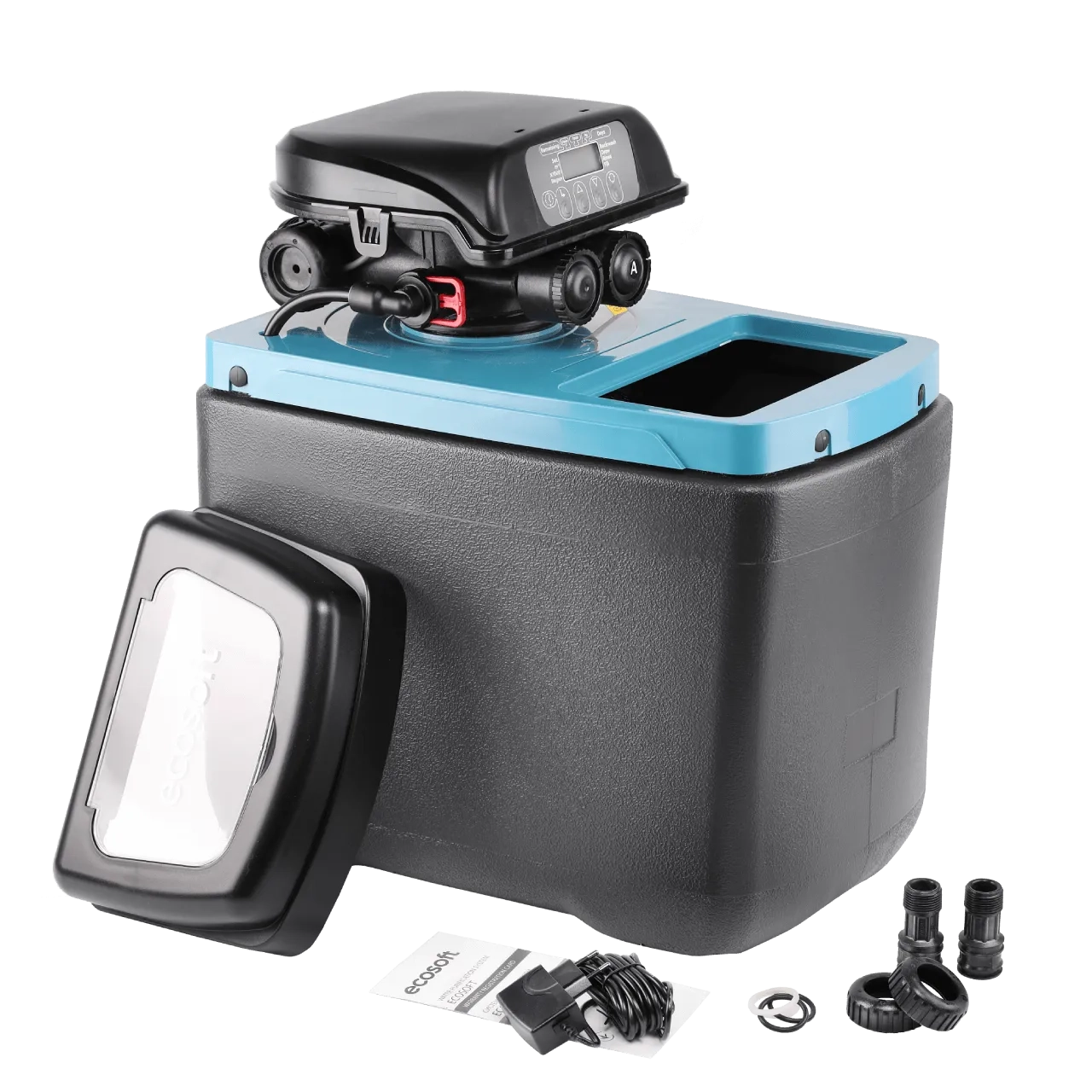

System Components

  • Softener body assembly (includes pressure tank with media inside, Ecosoft DV control valve)
  • Power adaptor 220–240 V / 12 W with European plug
  • Valve connection kit, 3/4″ male BSPT thread

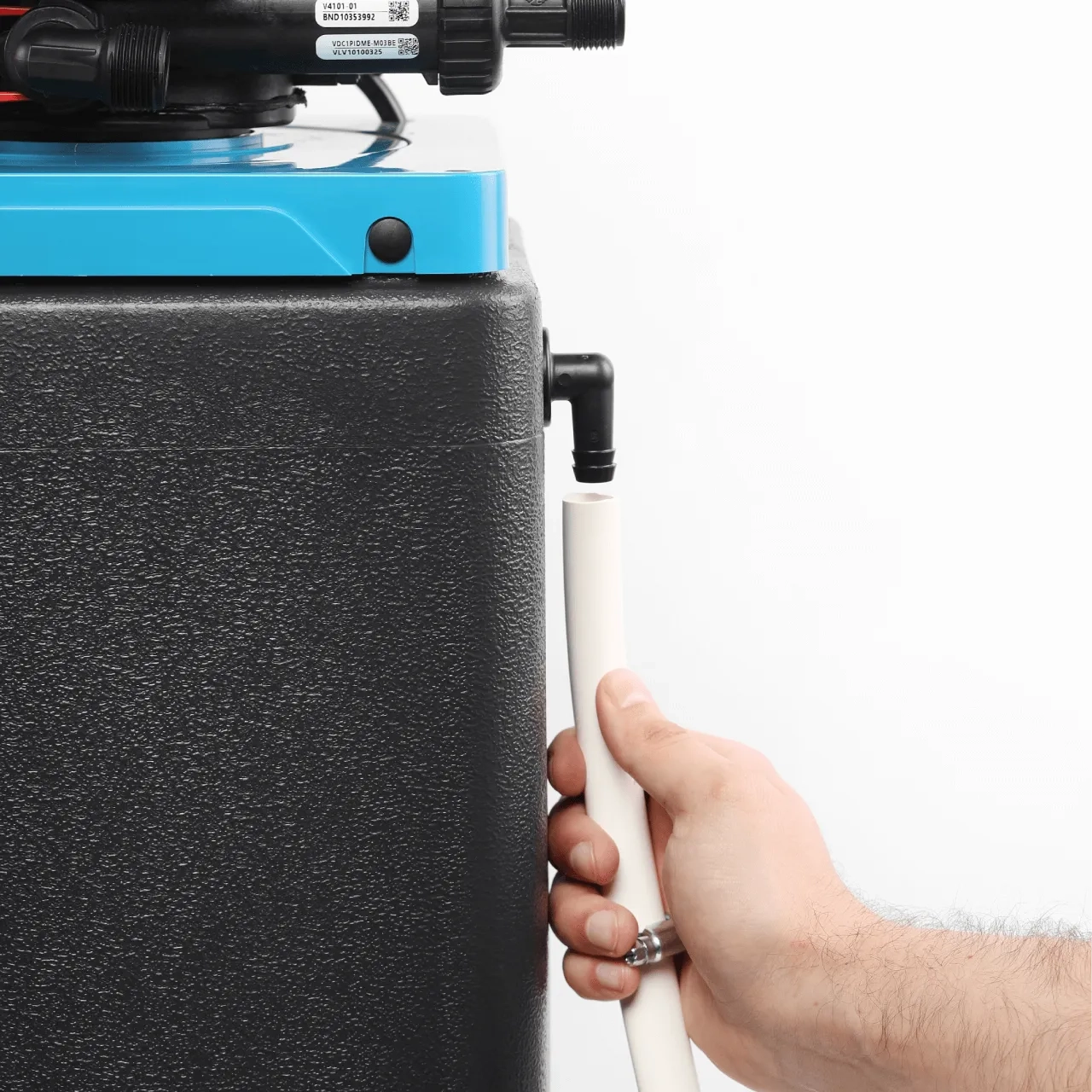

  • Drain & Overflow hoses 16 mm
  • Metal clamp – 2 pcs
  • Drain fitting ¾” х 16 mm

Source water requirements

Hardness – 500 mg/L CaCO₃
Iron – 0.2 mg/L
Manganese – 0.05 mg/L
Chemical oxygen demand – 5 mg/L O₂
Water temperature – +4…+30 °C

Service and maintenance

To ensure proper operation, keep the salt level in the brine tank above the water level at all times. We recommend keeping the tank around two-thirds full of salt. How often you need to add salt depends on water hardness and daily consumption, but for most homes, it’s enough to check it every 2 to 4 weeks.

Important: Never let the salt run out completely, as it may stop the regeneration process and reduce the efficiency of water softening.

If you wish to know more about this product please feel free to reach out using the contact form below:

Specifications

  • Ultra-compact 24 L water softener
  • Reduces hardness and extends the life of household appliances
  • Ideal for families with up to 5 members
  • Designed for apartments, ideally installed in the bathroom
  • Durable body, no scratches, diamond valve, no need pre-filter
  • Built-in mixing valve
