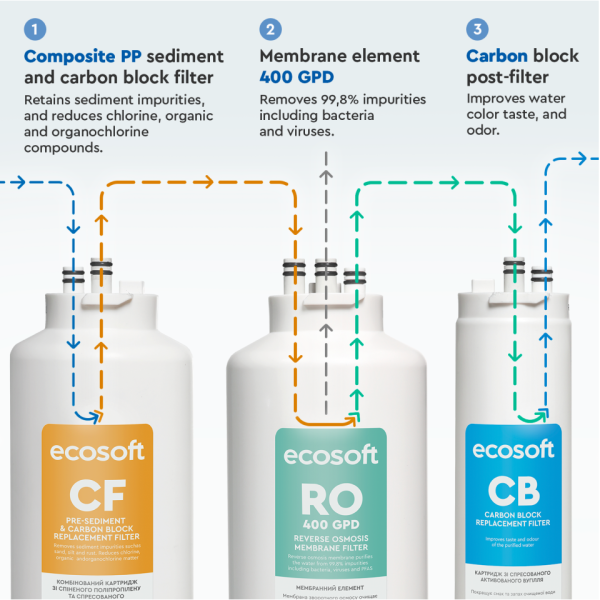

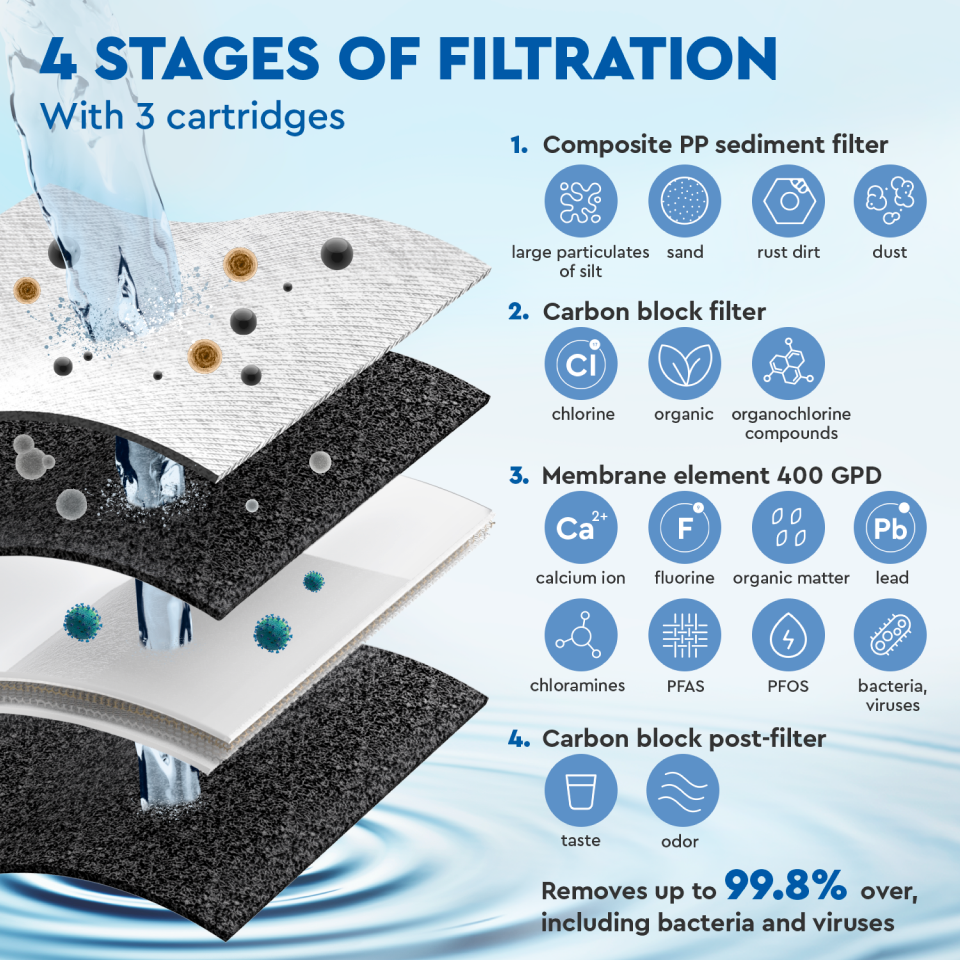

How It Works

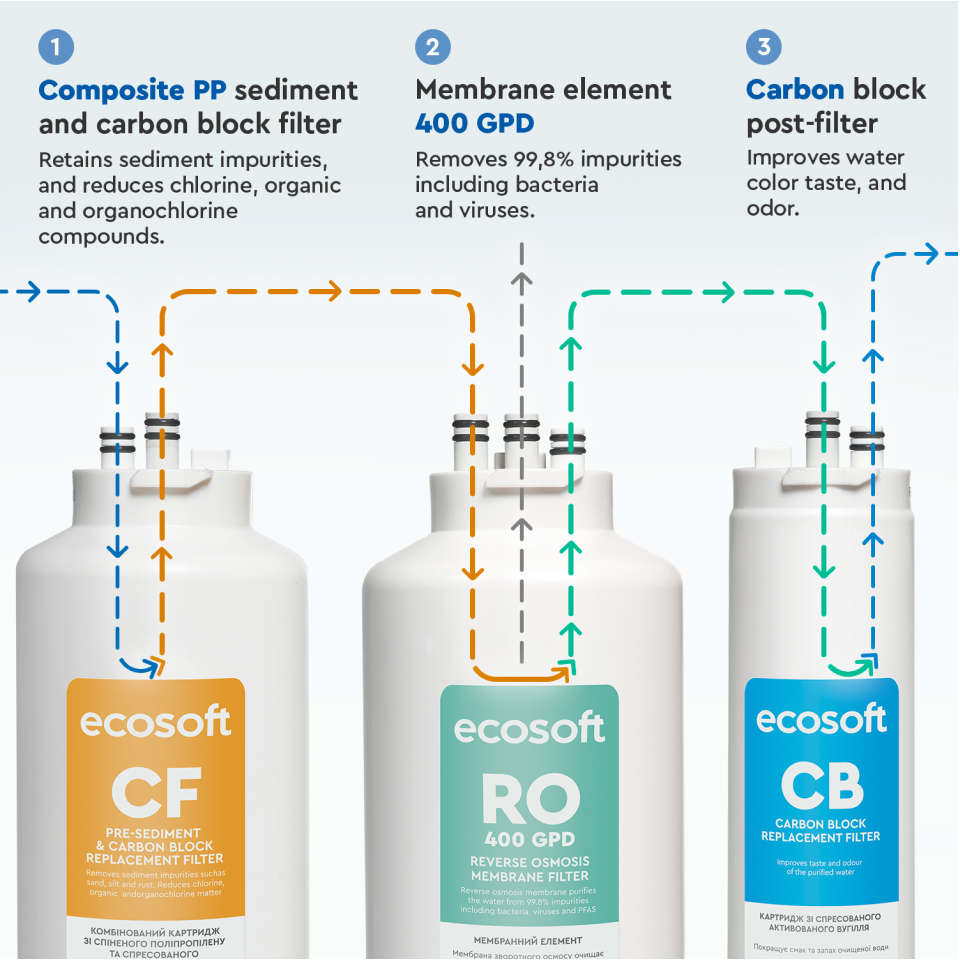

CROSS 60 filter uses a three-stage water purification system that effectively removes impurities, including bacteria, viruses, and harmful chemicals. The main filtration stages are described below:

Composite polypropylene and carbon block filter

In the first stage, water passes through a filter that traps sediment such as sand and rust, while also reducing chlorine content, organic compounds, and petrochemicals. This provides basic water purification and prepares it for the next stages.

Reverse osmosis membrane (400 GPD)

In the second stage, water undergoes molecular purification through a reverse osmosis membrane, which removes up to 99.8% of impurities, including bacteria and viruses. This process ensures the highest level of water purity.

Carbon post-filter

The final stage involves passing water through an activated carbon post-filter, which improves the taste and odor of the water, providing final purification before consumption.

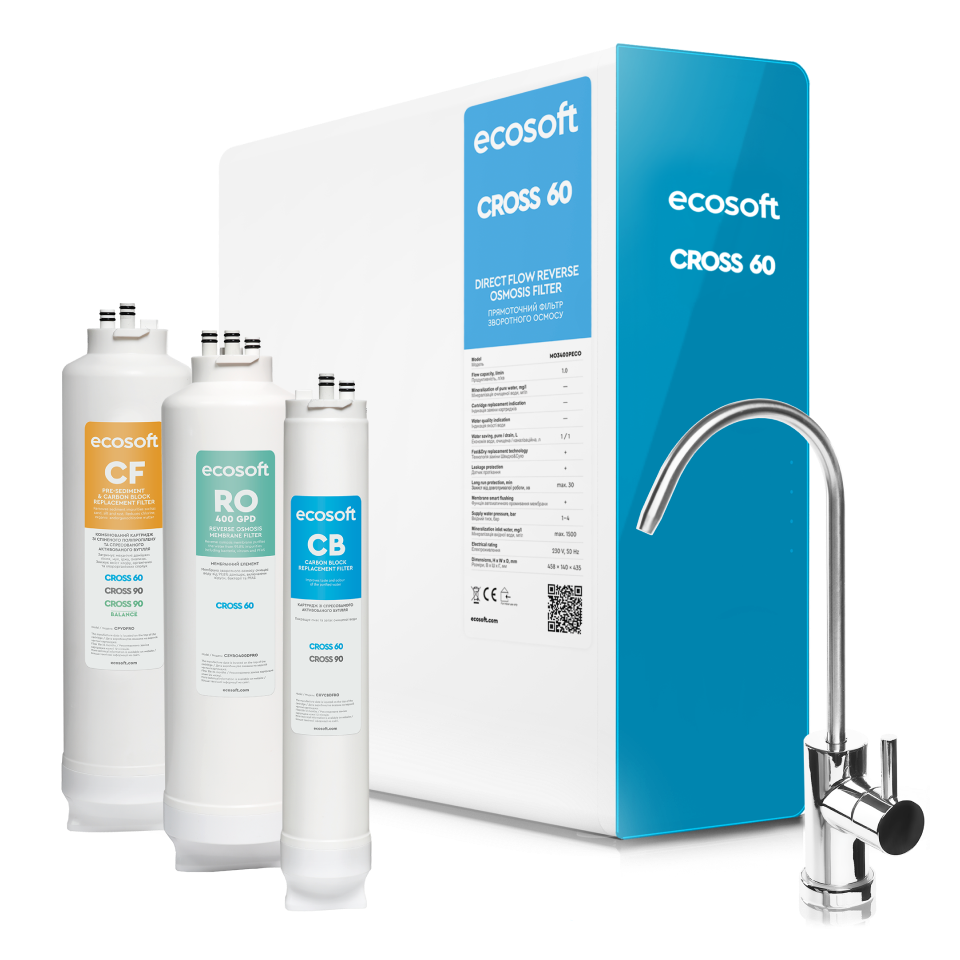

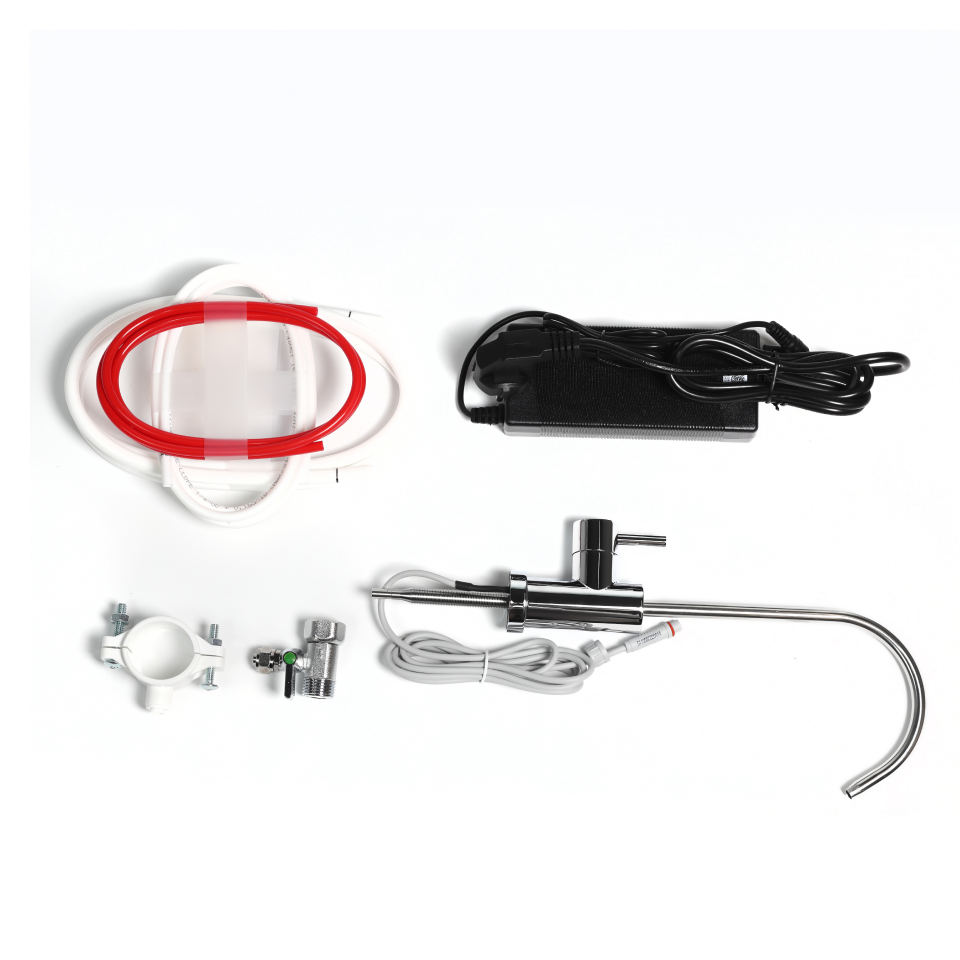

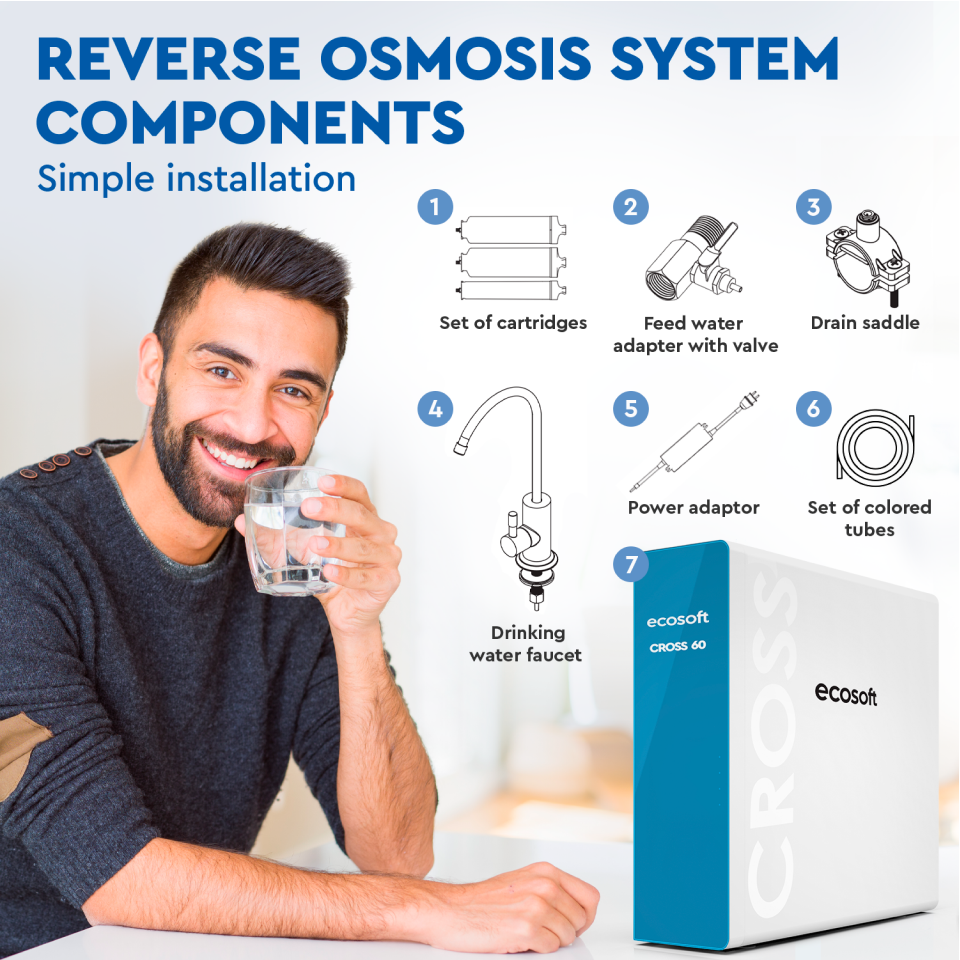

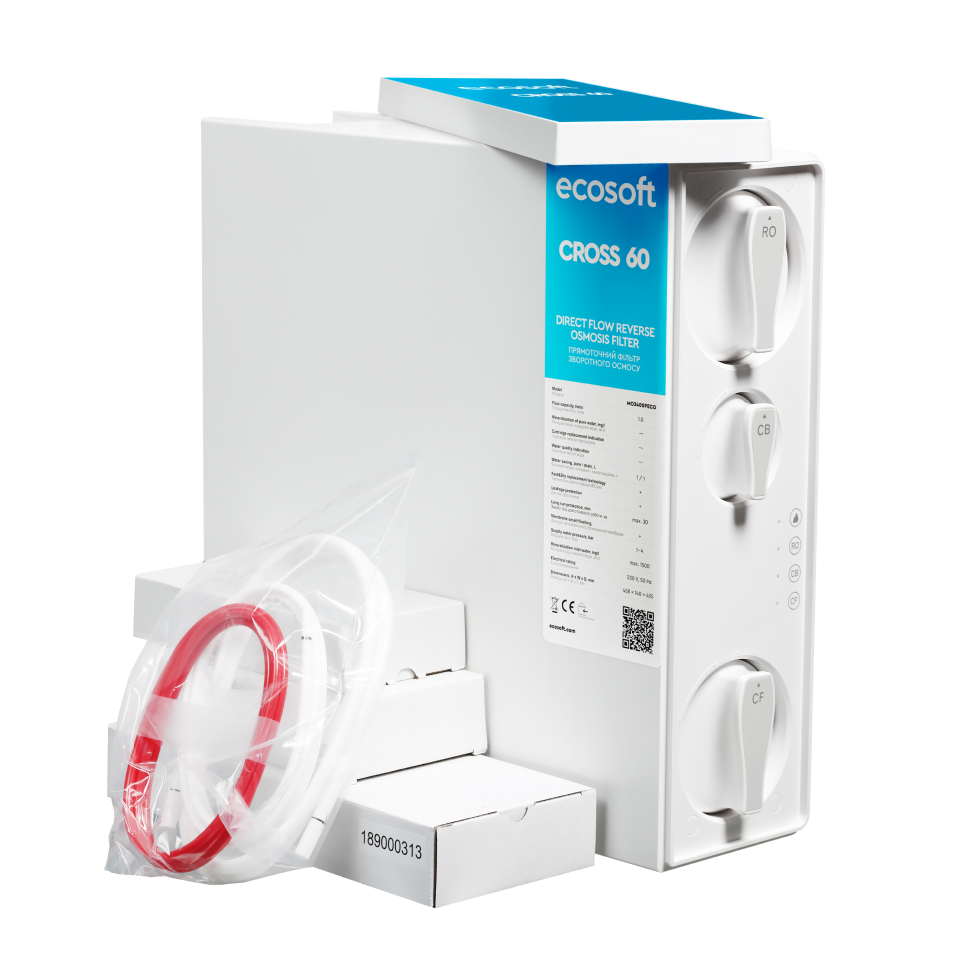

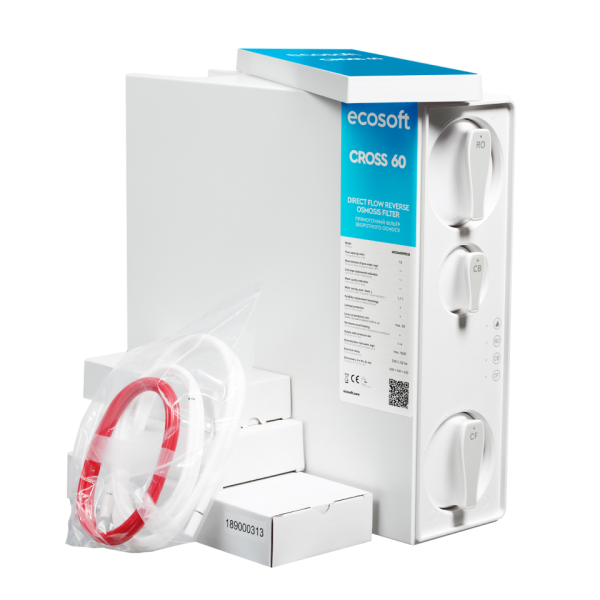

System components

• Filter housing

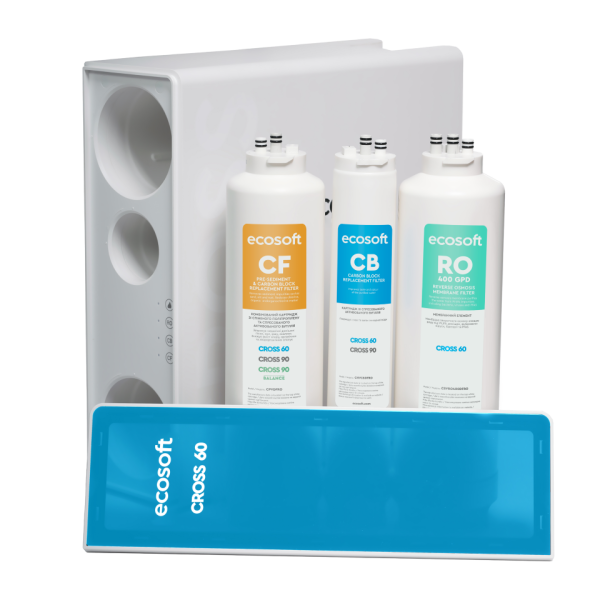

• Set of replacement filters
• Drinking water faucet
• 3-way connector
• Drain saddle
• Pack of tubes
• Detachable power supply
• User manual

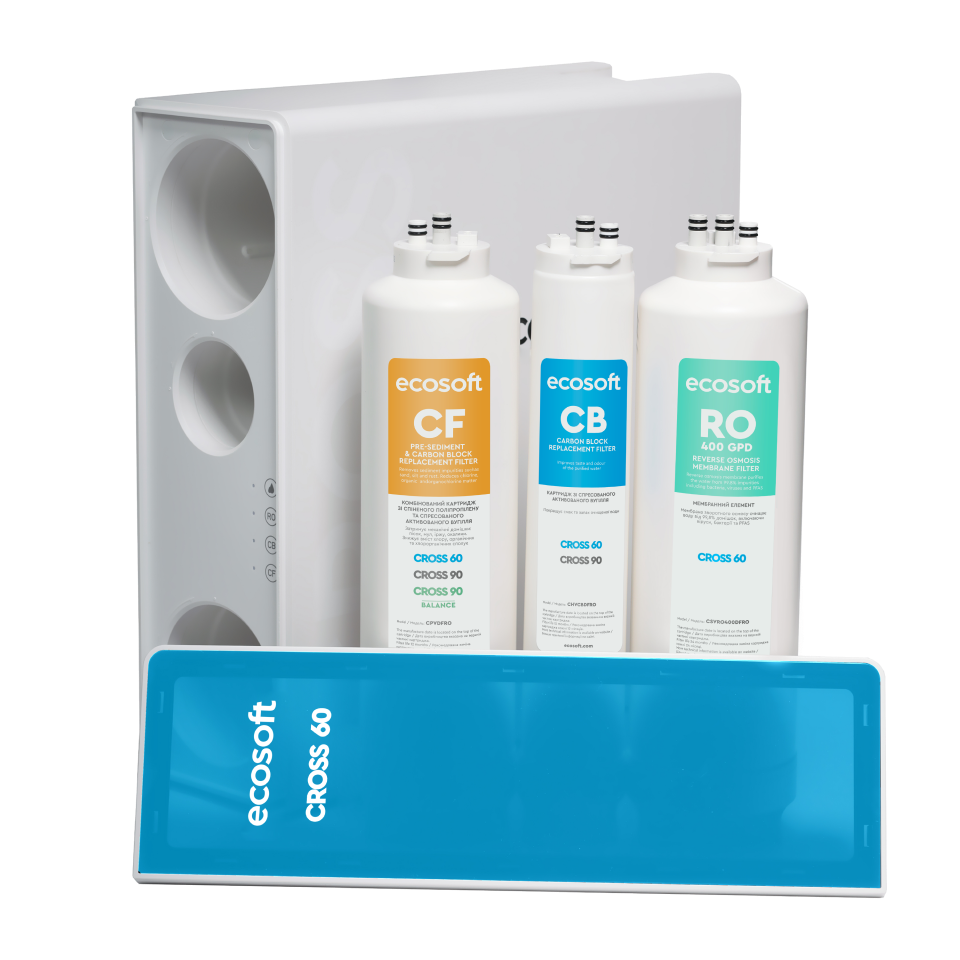

High performance filtration

• Composite polypropylene sediment and carbon block filter – removes sediment and rust particles, reduces content of chlorine, chlorination byproducts, natural organic matter, and petrochemicals. Replacement: once every 6 months.
• 400 GPD RO membrane element – purifies water from 99.8% of impurities including bacteria, viruses, and unpleasant tastes or odors. Replacement: once every 24 months.
• Chlorine taste and odor (CTO) filter – improves the taste and odor of purified water. Replacement: once every 12 months.

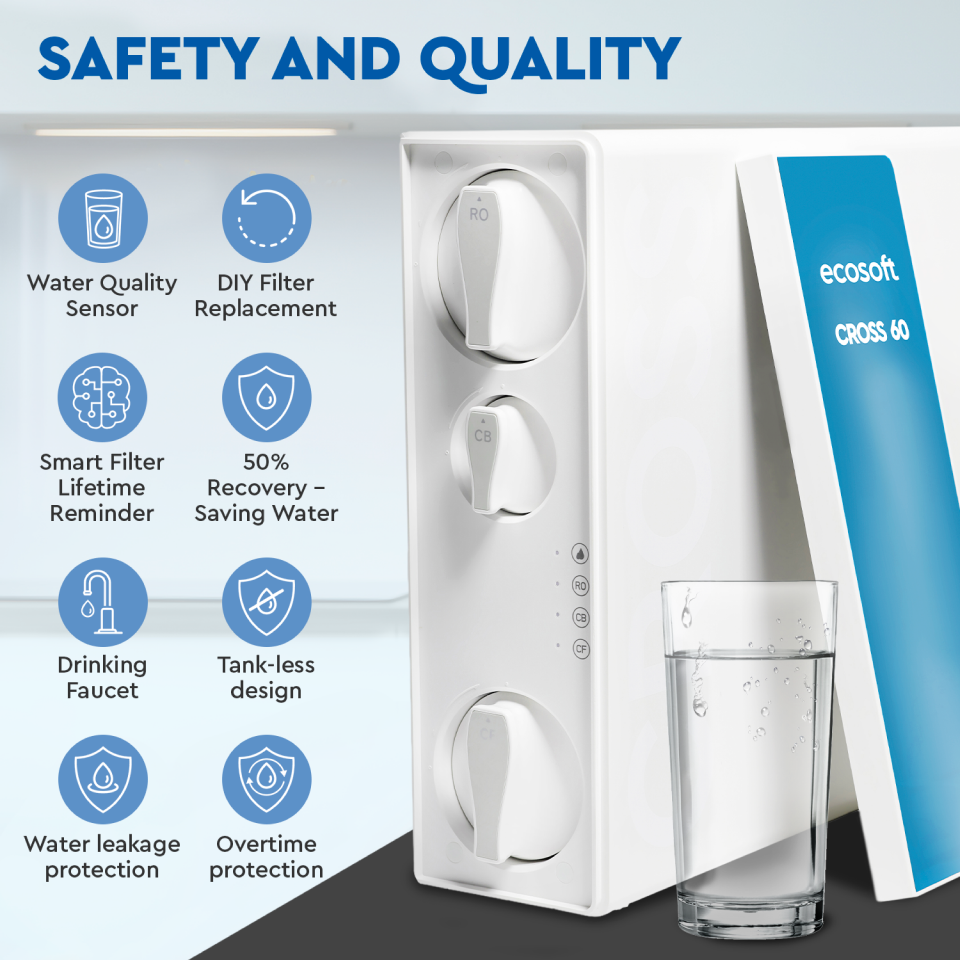

Smart functions

• Leakage protection: The filter automatically shuts off the inlet water if any leaks are detected inside the filter.

Technical characteristics

• Inlet pressure: 2-5 bar
• Inlet water temperature: +5…+30°C
• Capacity: 1 L/min
• Power supply: 230 V, 50 Hz
• System weight: 11 kg
• Permissible ambient temperature: +5…+40°C
• External connection to water supply: ½″ inch

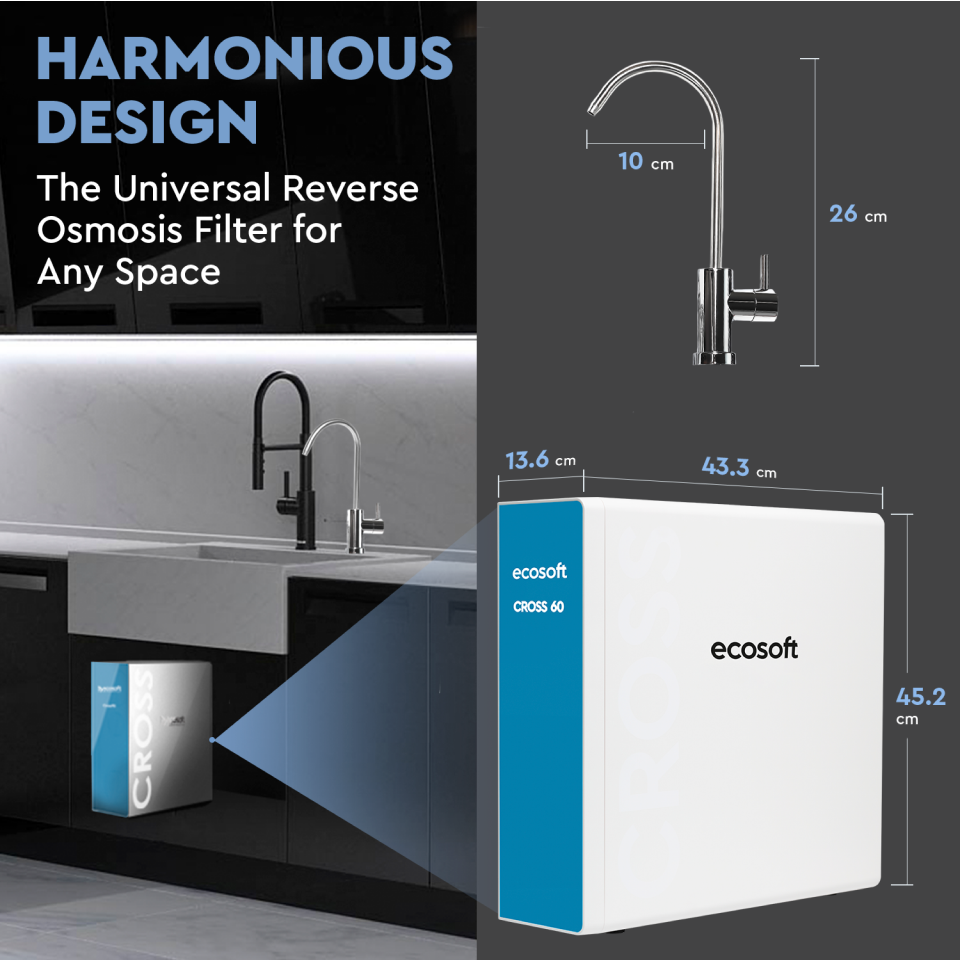

• Overall dimensions (H x W x D): 435 x 140 x 458 mm
• Power consumption: 120 W

Source water requirements

• pH: 6.5–8.5
• Total dissolved solids: ≤ 1500 ppm
• Hardness: <500 ppm CaCO₃
• Chlorine: ≤ 0.5 ppm
• Total iron: ≤ 0.3 ppm
• Manganese: ≤ 0.1 ppm
• Chemical oxygen demand: ≤ 5 ppm O₂
• Total microbial count (TMC): ≤ 50 CFU/100 ml
• Coliform index: ≤ 3
