Ecosoft CUBE 150 water softener is a compact all-in-one solution designed for apartments and medium-sized homes. The system effectively softens hard water, helping protect household appliances, plumbing, and heating systems from limescale buildup while improving everyday water comfort. Its space-saving cabinet design allows installation in kitchens, utility rooms, or other limited spaces, providing a reliable supply of softened water for daily household needs.
The built-in smart valve manages regeneration automatically based on water consumption, supporting efficient use of salt and water. Integrated functions such as brine dry mode, vacation mode, salt shortage alerts, and service reminders help maintain stable performance with minimal user effort. User-friendly controls and convenient service access ensure straightforward operation and maintenance.
Flow rate (max.) – 2.0 m³/h
Quantity of resin – 15 L
Usage of salt per regeneration – 1.5 kg
Usage of water per regeneration – 150 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness) – 3.0 m³
Duration of regeneration (max.) – 110 min
Pressure drop in service mode – 0.5 bar
Inlet pressure – 2–6 bar
Electrical requirements – 230 V, 50 Hz
Power consumption – 30 W
Inlet/outlet pipe connections – 3/4″
Dry weight – 27.55 kg
Dimensions (H × W × D) – 721 × 450 × 320 mm
Softener body assembly (includes pressure tank with ion exchange resin inside and integrated cabinet)
Power adaptor 220–240 V / 12 V with European plug

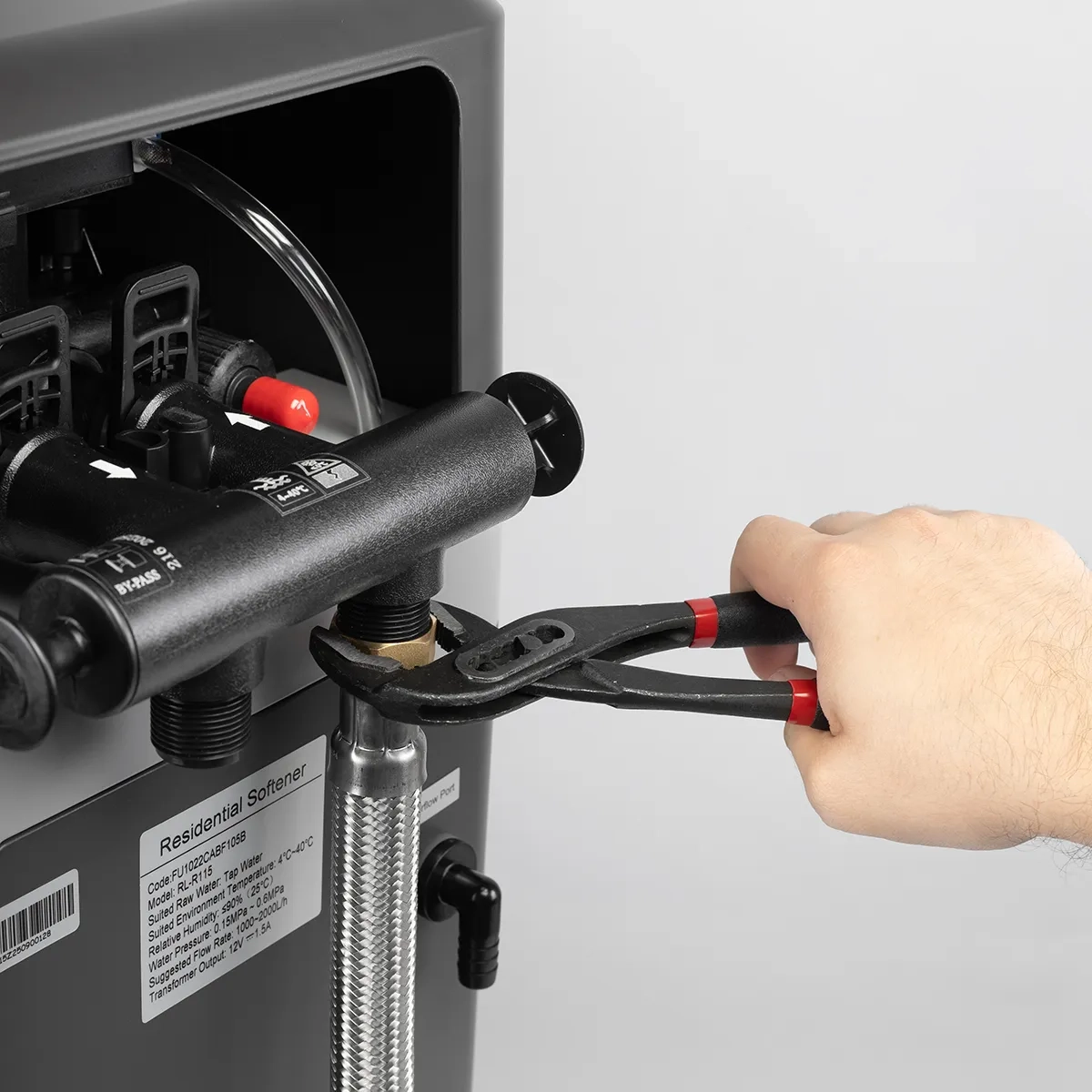

Bypass connection kit, 3/4″ male BSPT thread

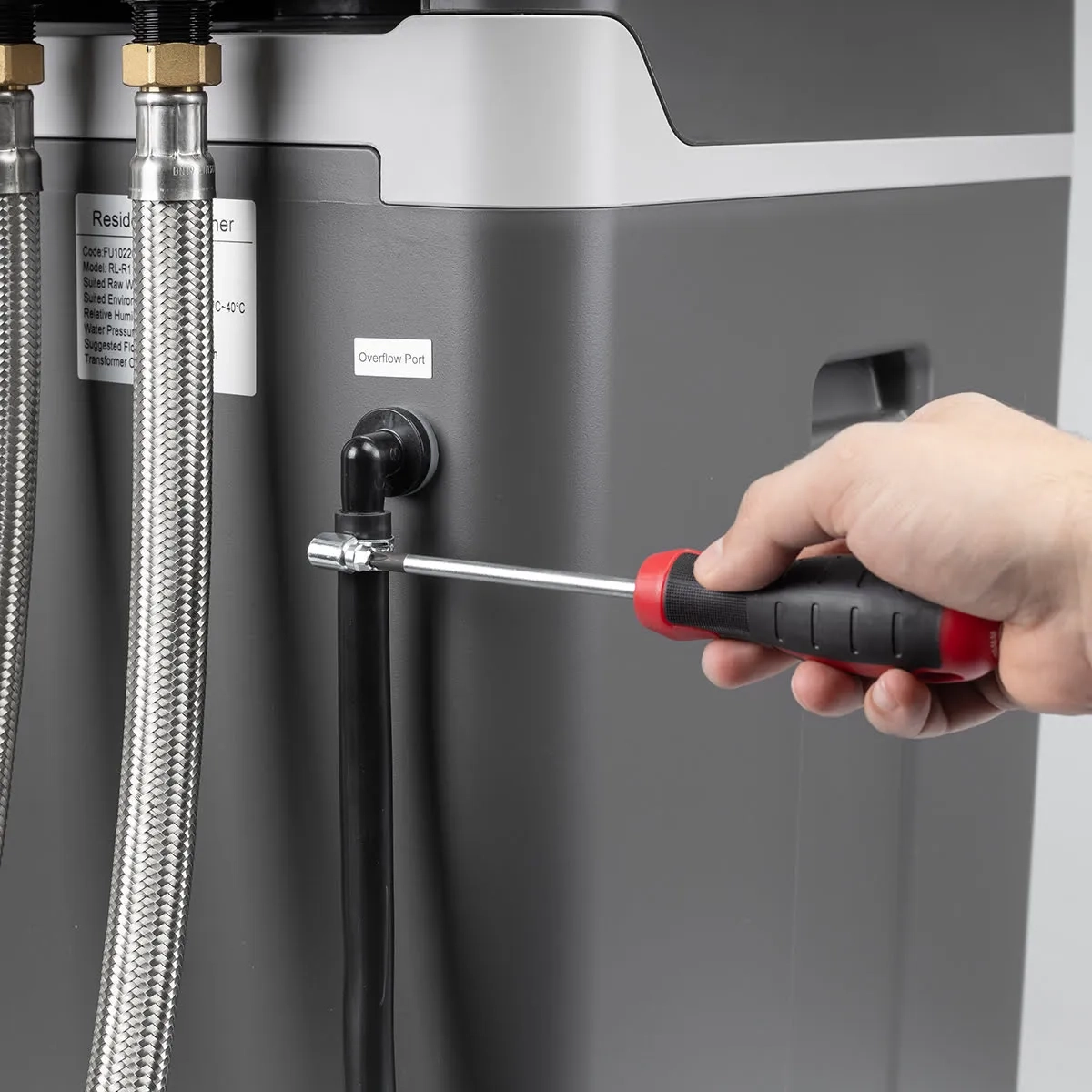

Drain and overflow hoses, Metal clamps, Drain fitting
Hardness – 500 mg/L CaCO₃
Iron – 0.2 mg/L
Manganese – 0.05 mg/L
Chemical oxygen demand – 5 mg/L O₂
Sediment prefilter rating – 100 μm

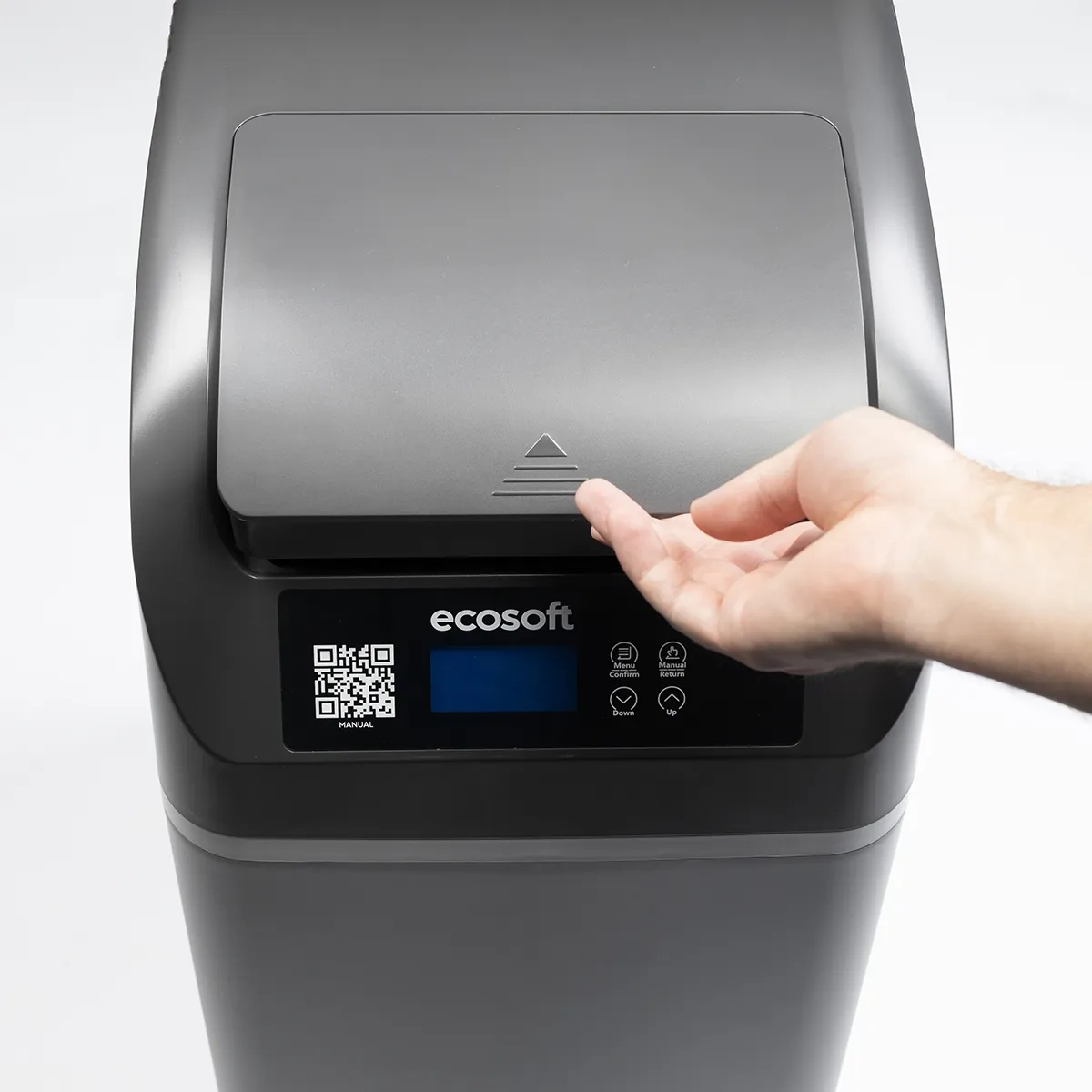

The integrated brine tank is designed for convenient everyday use and does not require frequent attention. Simply keep the salt level above the water level – ideally about two-thirds full. For most households, checking the salt level every 2–4 months is usually sufficient.
Important: Do not allow the salt to run out completely. Insufficient salt may interrupt the regeneration process and reduce the softening efficiency of the system.
Vacation mode helps protect the resin when the system is not in use for an extended period, such as during holidays or long absences. Smart alerts notify you about low salt levels and service needs, making routine maintenance easier and more predictable.
