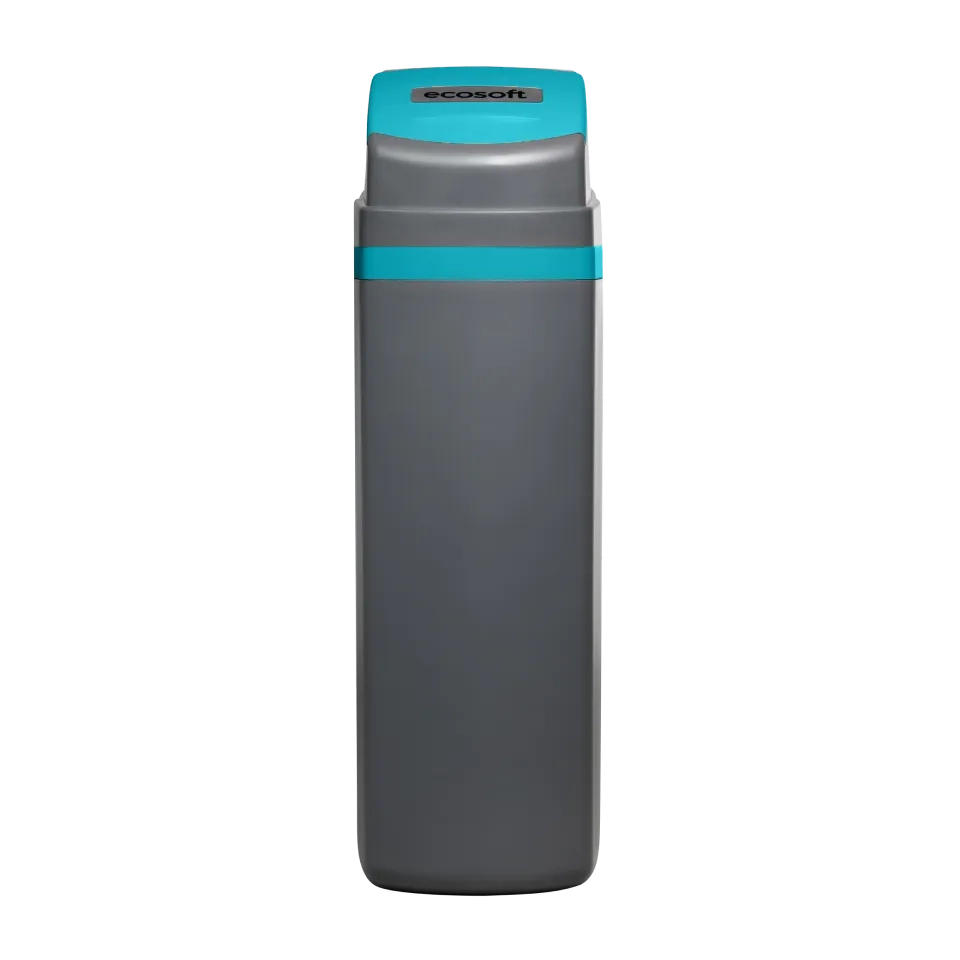

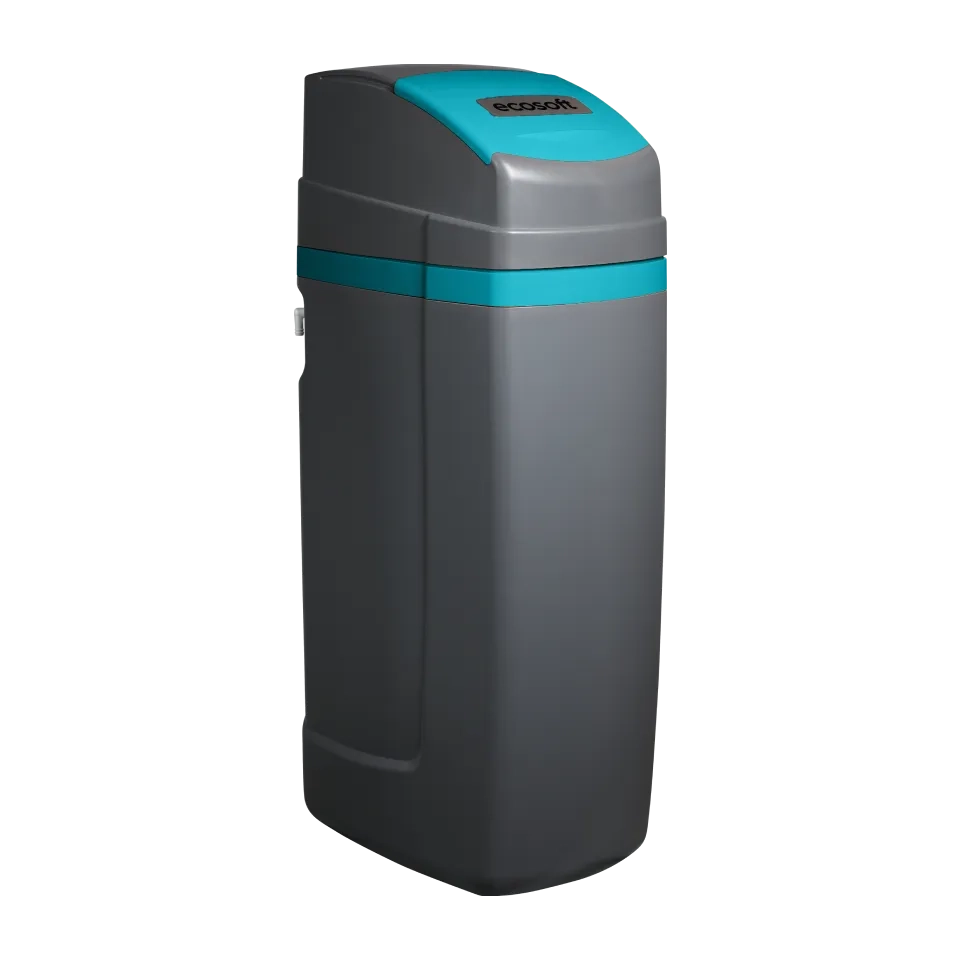

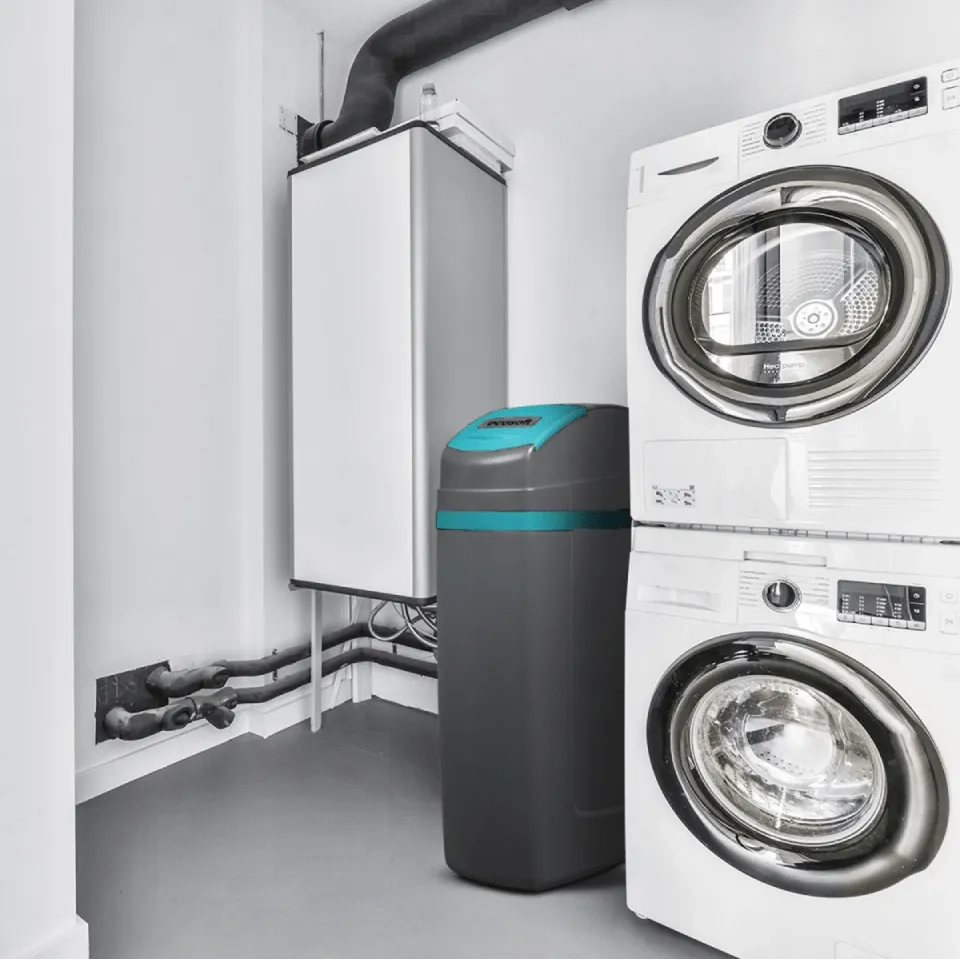

Ecosoft Titanium Azure 180 water softener is a compact monoblock system designed for households with moderate water consumption and limited space. With a flow rate of up to 1.3 m³/h, it reliably softens water for families of up to 6 people, protecting appliances, plumbing, and heating systems from limescale and mineral deposits. Its slim cabinet design makes it easy to install in smaller rooms or homes where every centimetre matters.

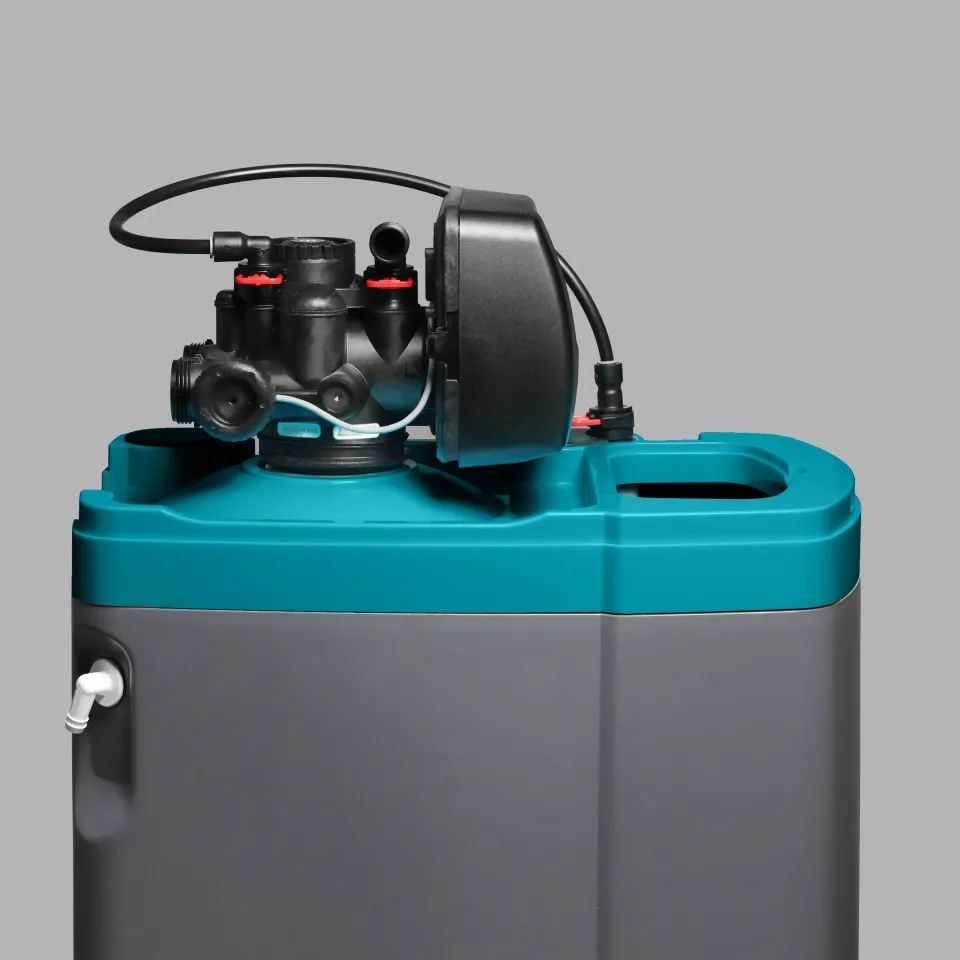

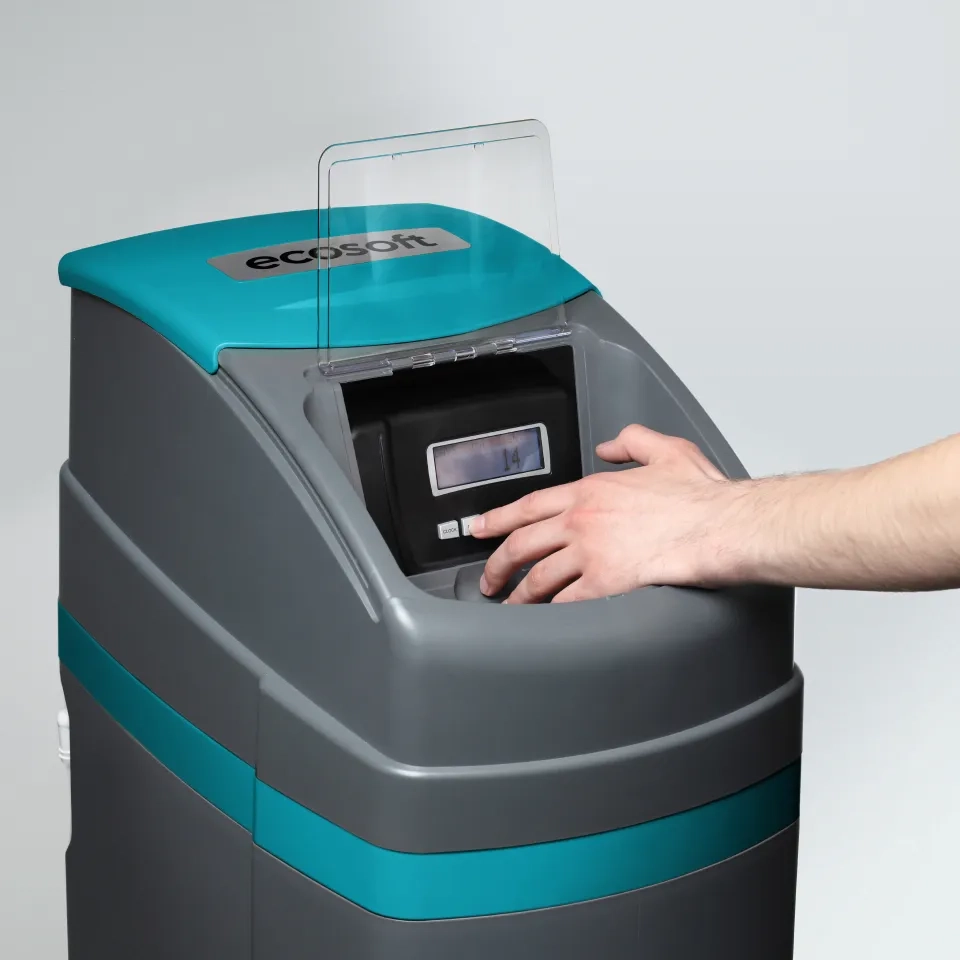

The system is equipped with the user-friendly Ecosoft CE valve, featuring intuitive programming and a multilingual menu in 7 languages for effortless operation. Built with premium US-made components, the Titanium Azure 180 ensures stable, long-lasting performance with minimal maintenance. A built-in mixing valve allows precise adjustment of water softness, improving daily comfort while helping to save soap and detergents.
Flow rate (max.) – 2.5 m³/h
Quantity of resin – 18 L
Number of bathrooms (max.) – 2
Number of people (max.) – 6
Usage of salt per regeneration – 1.8 kg
Usage of water per regeneration – 240–250 L
Volume capacity (at 250 mg/L CaCO₃ inlet water hardness) – 3.6 m³
Duration of regeneration (max.) – 80 min
Pressure drop in service mode – 0.5 bar
Inlet pressure – 2–6 bar
Electrical requirements – 230 V, 50 Hz
Power consumption – 30 W
Inlet/outlet pipe connections – 3/4″
Dry weight – 35 kg
Dimensions (H × W × D) – 1130 × 351 × 528 mm
Pressure tank – 835″
Softener body assembly (includes pressure tank with media inside, Ecosoft CE control valve)
Power adaptor 220–240 V / 12 W with European plug
Valve connection kit, 3/4″ male BSPT thread
Hardness – 750 mg/L CaCO₃
Iron – 0.2 mg/L
Manganese – 0.05 mg/L
Chemical oxygen demand – 5 mg/L O₂
Sediment prefilter rating – 100 μm
Water temperature – +4…+30 °C

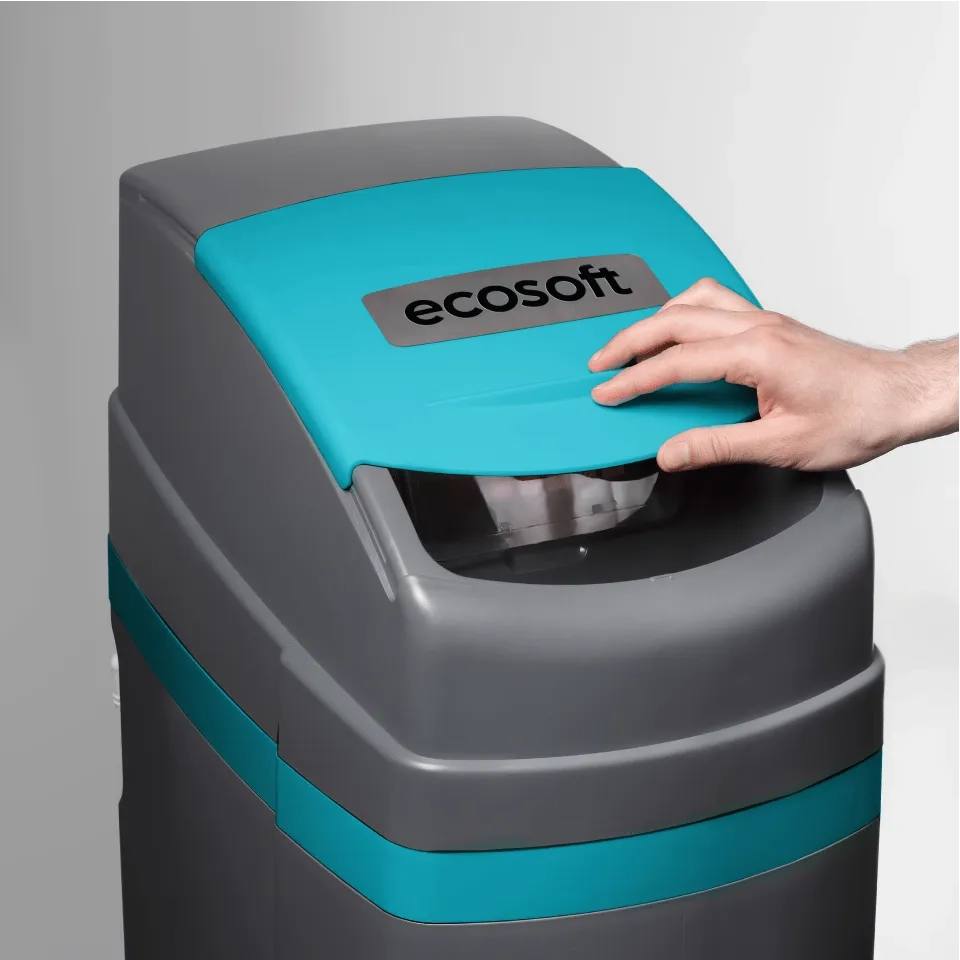

To ensure proper operation, always keep the salt level in the brine tank above the water level. We recommend filling the tank to about two-thirds with salt. How often you need to top it up depends on your water hardness and daily consumption, but in most homes it’s enough to check every 4–8 weeks.
Important: Never let the salt run out completely, as this may stop regeneration and reduce the efficiency of your softener.
