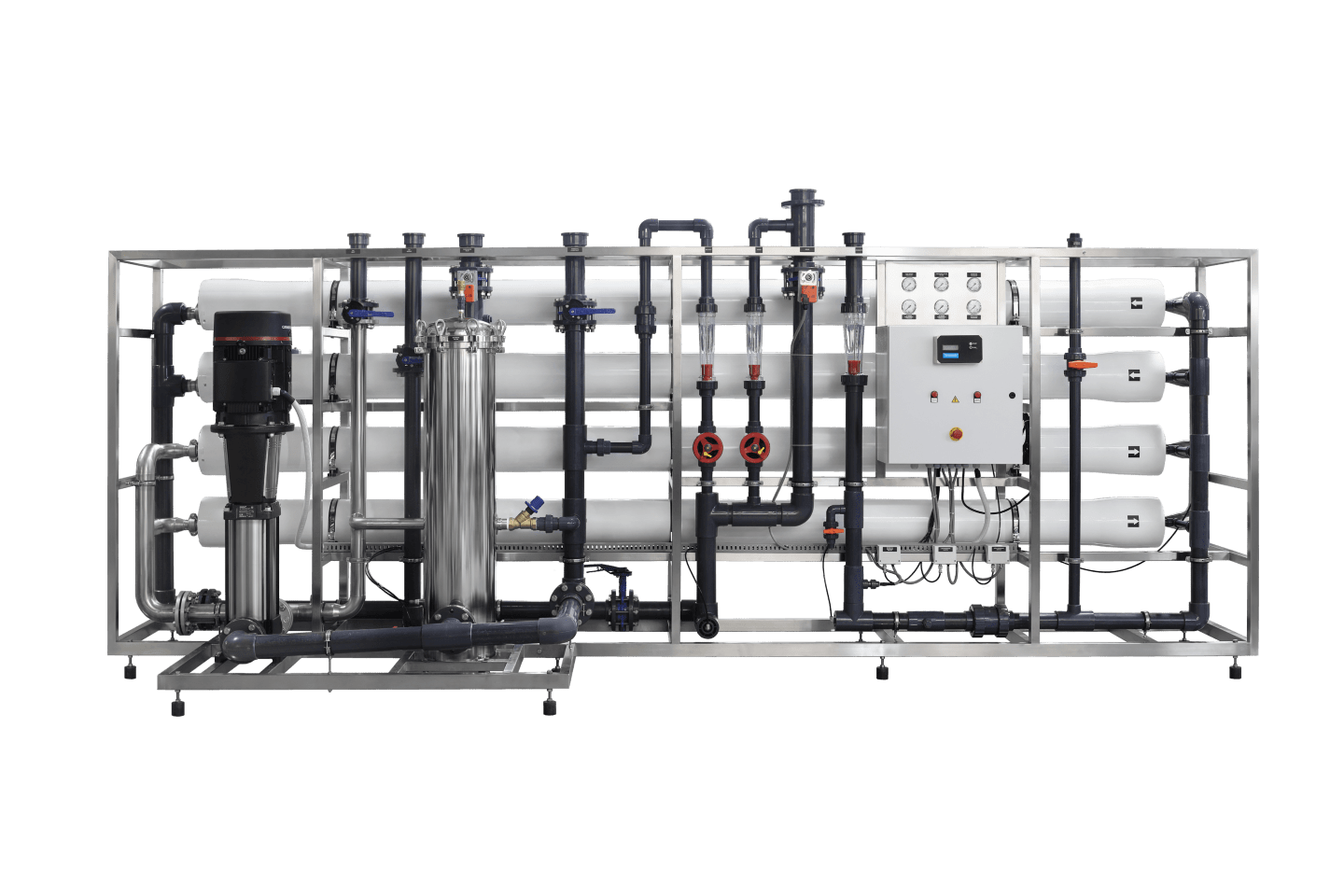

Professional MO16 8″ Reverse Osmosis System

The MO16 TP5 is engineered for high-volume industrial facilities. With 160000 L/day, it meets performance demands while providing efficient digital control and robust hardware.

Key features

  • Energy efficiency with Grundfos pump
  • Reliable performance with quality components and engineering
  • Individual project evaluation per request
  • ISO 9001 certified factory
  • CE marked and confirmed to be safe in accordance with EC New Approach Directives

Equipment

  • Grundfos® CR 32-6 high pressure pump: 1 pcs
  • 8040-4 membrane vessel: 4 pcs
  • Stainless steel housing with 7 PP 2,5 × 40″ filters: 1 pcs
  • Motorized butterfly valves (feed water in, flush out): 2 pcs
  • Balancing valves (concentrate reject, concentrate recycle): 2 pcs
  • Electrical cabinet with Ecosoft controller: 1 set
  • Piping, instrumentation: 1 set
  • Steel frame: 1 set

Options

  • Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
  • Dosing pump for antiscalant or other RO chemicals
  • Permeate inlet for permeate membrane rinse
  • Raw water blending line

Сonnections

  • Influent water: DN80 (flange)
  • Permeate: DN65 (flange)
  • Concentrate: DN80 (flange)
  • CIP inlet: DN65 (flange)
  • CIP return: DN65 (flange)
  • CIP permeate: DN40 (G 1½″)

Technical data

  • Permeate capacity¹: 16 m³/h
  • Permeate recovery²: 75%
  • Maximum TDS: 4500 mg/L
  • Influent flow demand: 20…25 m³/h (service)
  • Operating pressure: 8…12 bar
  • Maximum pressure: 14 bar
  • Electrical requirements: 380…400 V, 50 Hz (3 ph)
  • Electrical power: 11 kW
  • Prefilter rating: 5 μm
    ¹ depends on feed water TDS, temperature, and permeate recovery
    ² for low scaling/fouling water

Feed water requirements

  • TDS: 4500 mg/L
  • hardness: 150 mg/L CaCO₃
  • iron: 0.1 mg/L
  • manganese: 0.05 mg/L
  • hydrogen sulfide: none
  • silicate: 20 mg/L
  • residual chlorine: 0.1 mg/L
  • SDI: 5
  • chemical oxygen demand: 4 mg/L O₂

If you wish to know more about this product please feel free to reach out using the contact form below:

Specifications

  • Capacity: 160000 litres per day
  • OC5000 controller with LCD interface
  • Stainless steel frame and membrane rack
  • Compact design for easy installation
  • Grundfos pump included for stable flow
