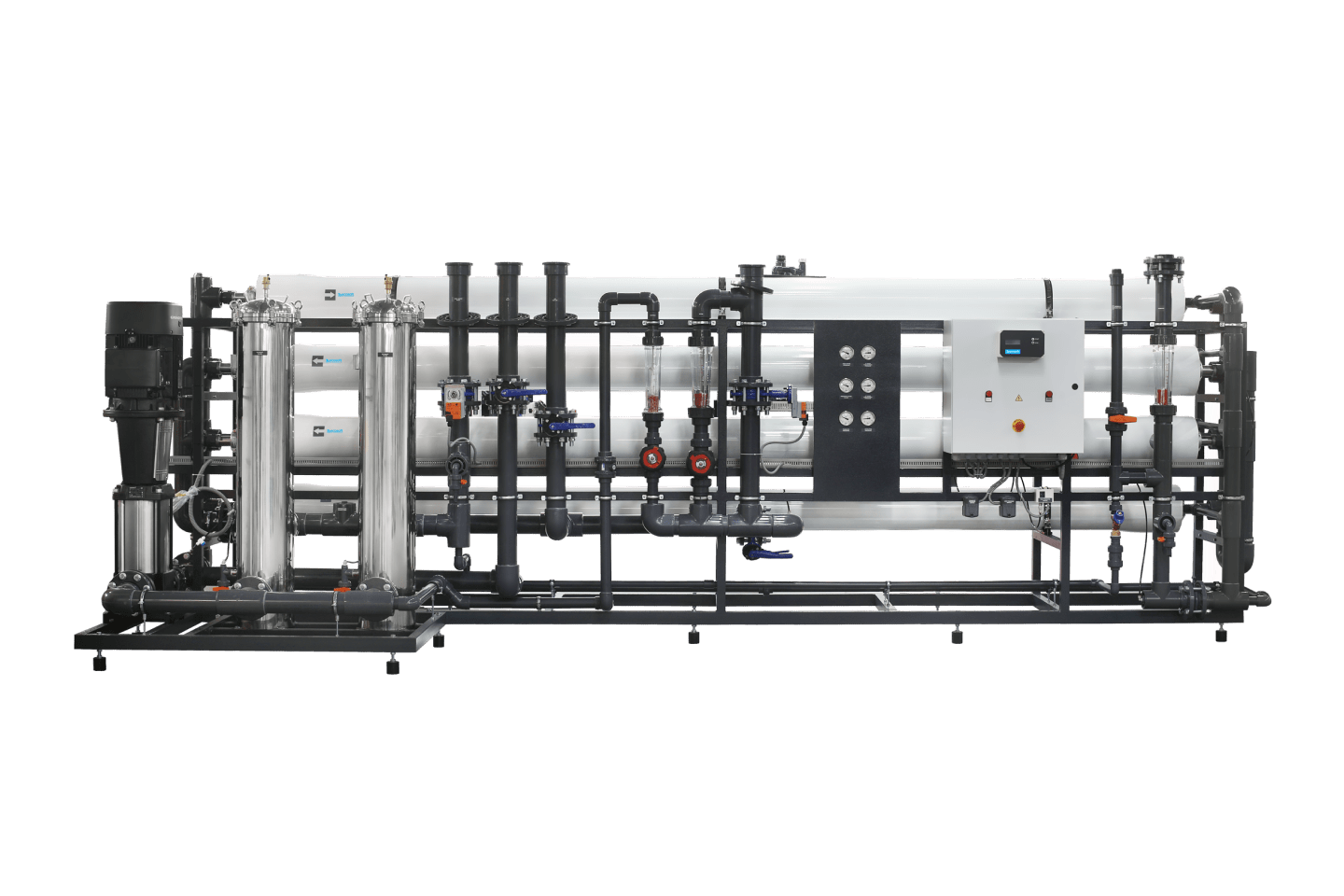

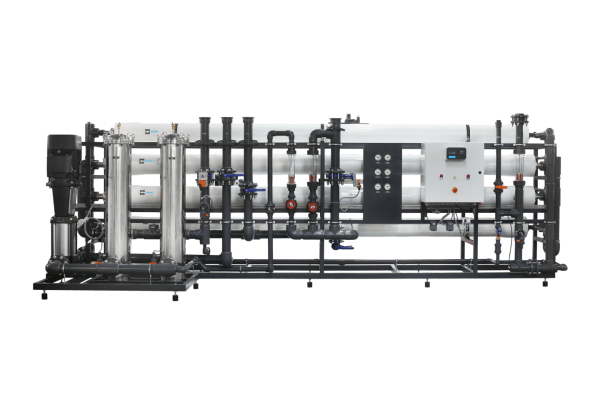

Ecosoft MO24 TP5 is a large-capacity RO system for commercial and manufacturing use. It ensures stable flow and long service life with minimal maintenance.
Key features
- Energy efficiency with Grundfos pump
- Reliable performance with quality components and engineering
Individual project evaluation per request
- ISO 9001 certified factory
- CE marked and confirmed to be safe in accordance with EC New Approach Directives
Specification
Equipment
- Grundfos® CR 45-4 high pressure pump: 1 pcs
- 8040-4 membrane vessel: 6 pcs
- Stainless steel housing with 7 PP 2,5 × 40″ filters: 2 pcs
- Motorized butterfly valves (feed water in, flush out): 2 pcs
- Balancing valves (concentrate reject, concentrate recycle): 2 pcs
- Electrical cabinet with Ecosoft controller: 1 set
- Piping, instrumentation: 1 set
- Steel frame: 1 set
Options
- Filmtec™ XLE-440 / ECO PRO-440 or Ecosoft ELP-8040 membranes
- Dosing pump for antiscalant or other RO chemicals
- Permeate inlet for permeate membrane rinse
- Raw water blending line
Сonnections
- Influent water: DN80
- Permeate: DN65
- Concentrate: DN80
Technical data
- Permeate capacity¹: 24 m³/h
- Permeate recovery²: 75%
- Maximum TDS: 3000 mg/L
- Influent flow demand: 30…40 m³/h (service)
- Operating pressure: 8…12 bar
- Maximum pressure: 14 bar
- Electrical requirements: 380…400 V, 50 Hz (3 ph)
- Electrical power: 18.5 kW
- Prefilter rating: 5 μm
¹ depends on feed water TDS, temperature, and permeate recovery
² for low scaling/fouling water
Feed water requirements
- TDS: 3000 mg/L
- hardness: 150 mg/L CaCO₃
- iron: 0.1 mg/L
- manganese: 0.05 mg/L
- hydrogen sulfide: none
- silicate: 20 mg/L
- residual chlorine: 0.1 mg/L
- SDI: 5
- chemical oxygen demand: 4 mg/L O₂
